CNC Wood Engraving Machine

cortadora cnc de metal de acero inoxidable

Máquina cnc de plasma de 1300 * 2500 mm para corte de metales.
  • Artículo No.:

    Plasma-1325
  • orden (moq):

    1
  • origen del producto:

    China
  • Puerto de embarque:

    Guangzhou
  • Detalle del producto

cortadora cnc de metal de acero inoxidable

Plasma Machine


parámetro del producto

No.

modelo

plasma-1325

1

área de trabajo

1300x2500 x200 mm

2

tamaño de embalaje

2150 x3250x1500mm

3

mesa de trabajo

mesa de corte de superficie de agua

4 4

sorce de plasma

60a-200 a (opcional)

5 5

aplicación de corte máximo

0.5-30mm (depende del material)

6 6

guía

Guía lineal de Taiwán Hiwin, 20 mm de espesor

7 7

tipo de transimisión
x, y: guía lineal cuadrada de Taiwán hiwin, conducción en bastidor

z: husillo de bolas y riel lineal cuadrado hiwin de 20 mm

8

presion del gas
gas acetileno o gas propano max 0.1mpa

9 9

sistema de control
flcnc- f2100b

10

antorcha estilo de control de altura
plasma thc

11

motor

motor paso a paso leadshine

12

s oftware
Starcam

13

potencia de la máquina
& lt; 3000w

14

modo de arco
prensa de arco ajustador de ure

15

max. velocidad de viaje rápida

15 m / min

dieciséis

max. velocidad de trabajo

10 mm / min

17

precisión de reposicionamiento

0.1mm

18 años

código de comando

código g, dxf, * .mmg, *. plt, hpgl, bmp

19

voltaje

ac220v / 110v, 50hz / 60hz


Detalles de producto

Descripción del producto

● diseño profesional para cortar materiales metálicos, como acero inoxidable, aluminio, latón, etc.
● alta configuración, alta velocidad de corte y precisión.
● sistema de control: control dsp, con interfaz usb.
● material de corte: acero, cobre, hierro, aluminio, chapa galvanizada, placas de titanio, etc.
● formato de archivo: código g.
● software de edición: fastcam




enviar un mensaje

Si está interesado en nuestros productos y desea conocer más detalles, deje un mensaje aquí, le responderemos lo antes posible.

    Tags relacionados :

Productos relacionados
Mopa fiber color laser marking machine

20W Mopa fiber color laser marking machine

20w Fiber laser jewelry color marking machine

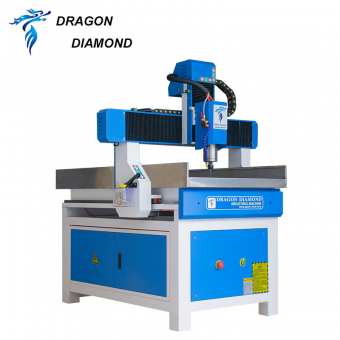

cnc router machine

1080 CNC Router Machine for Stone Marble Granite Metal Advertising Engraving Cutting Machine

1080 CNC Router Machine for Stone Marble Granite Metal Advertising Engraving Cutting Item 1080 CNC Engraving and Milling Machine Model LZ-1080 X/Y/Z Working Area 1000*800*180mm Spindle Power 5.5KW Milling Spindle Inverter Sunfar Spindle Rate 24000r/min Voltage 380V, 50Hz Tool 3.175/4/6/8/12/12.7mm Instruction Format HPLG3D G-code Reposition Accuracy ±0.03mm Max Speed 8000mm/min Engraving Speed 4000mm/min Guide Rail Taiwan HIWIN Square Guide Rail Ball Screw Taiwan HIWIN ball Screw Control System Weihong 95A Motor & Driver Delta Servo Working Environment Temperature -10℃ to 40℃,Humidity 35%-75% Working Table Size 1020*820mm Machine Size 1780*1700*1650mm Machine Weight 4000KG

Fiber Marking Machine

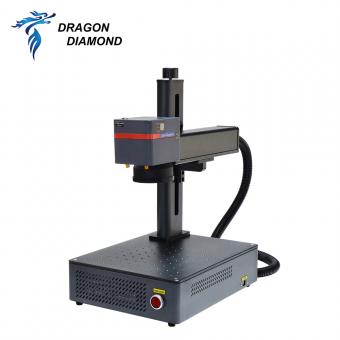

New Arrival Portable Fiber Marking Machine with Support Frame 20w 30w Marker for Metal

New Arrival Portable Fiber Marking Machine with Support Frame 20w 30w Marker for Metal Laser  Fiber laser generator Output power 20W/30W Marking range 70×70mm,100×100mm(Optional) Deflection seismic mirror High-precision two-dimensional scanning system Laser wavelength 1064mm Focus the lens 130mm Marking speed ≤7000mm/s Master control Integrated motherboard, 8-inch capacitor fully bonded to the screen operating system Linux system Marking type of engraving Redlett Postionen, Foxin Line width 0.03mm Repeatable positioning accuracy 0.01mm Targeting method Red light positioning, focusing The number of engraved character lines The number of engraved character lines Print speed 800 characters (related to material and printed content) Front Chinese and English, numbers, Chinese Traditional and other standard fonts File format BMP,DXF,HPGL,JPEG,PLT Barcodes CODE39,CODE128,CODE126,QR110V/   Power supply 220VAC,324Wh15Ah    Power consumption ≤250W   Operating temperature  0-40°

Non Metal Laser Cutting Machine Manufacturers

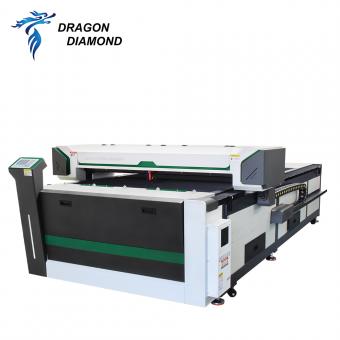

máquina de corte de metal con láser co2 no metal
